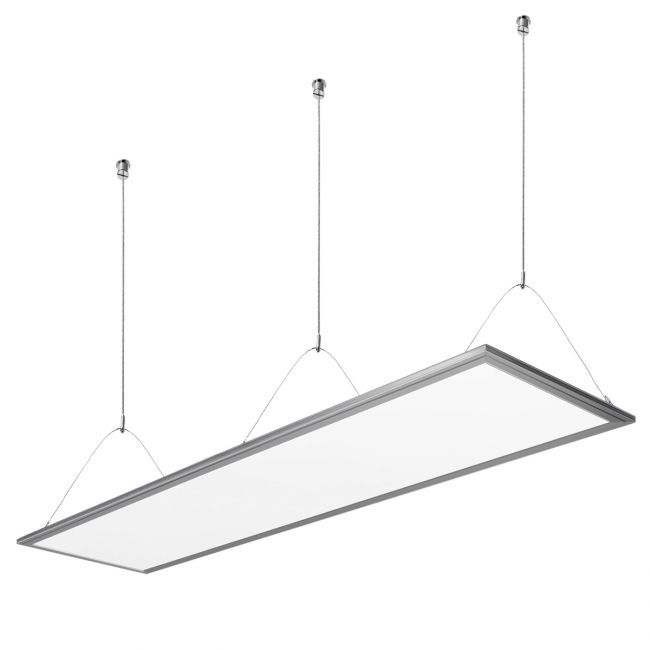

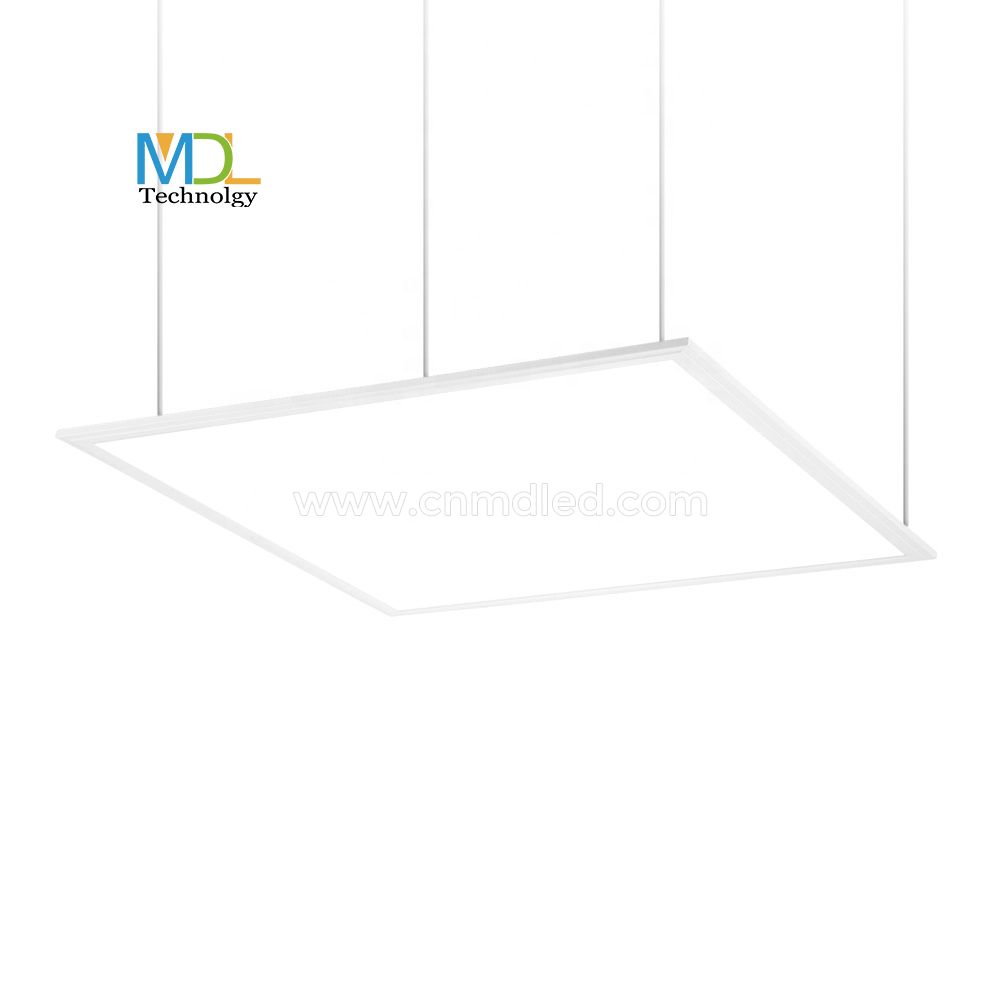

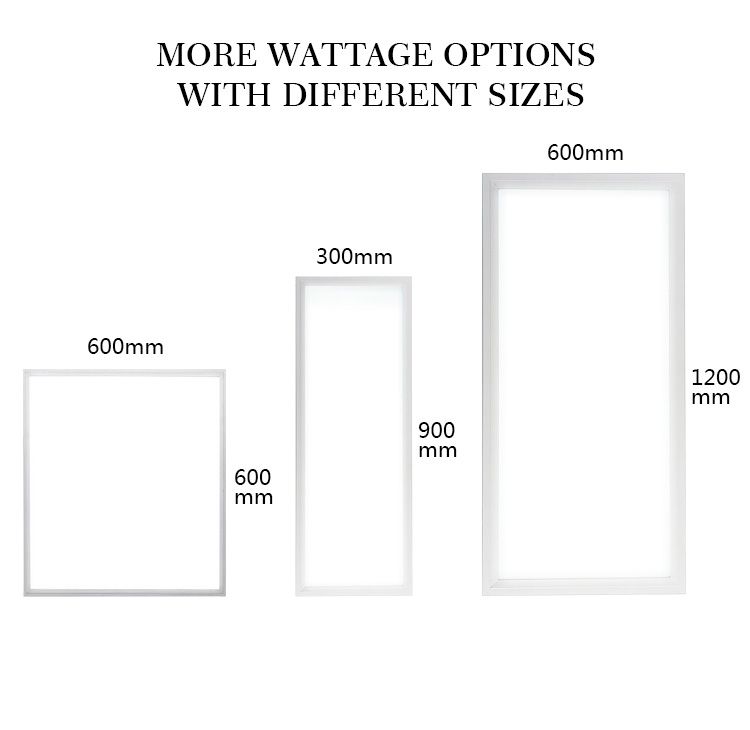

MDL Suspension LED Panel Light 600x600 600x1200 300x600 300x1200 2x2ft 2x4ft 1x2ft 1x4ft Model: MDL-PL-CE

MDL Suspension LED Panel Light 600x600 600x1200 300x600 300x1200 2x2ft 2x4ft 1x2ft 1x4ft Model: MDL-PL-CE

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80;

● UGR< 19/17 available;

● SDCM<3 available;

● Tridonic/Philips/Osram Driver available; （Triac/0-10V/Dali available）

● Matrail: Aluminum+PMMA LGP


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● IP Range: IP44

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ～ +50℃ operating temperature

● -20℃ ～ +50℃ storage temperature


PERFORMANCE SUMMARY

MDL-PL-CE LED Flat Panel Light


INSTALLATION

Panel Light
