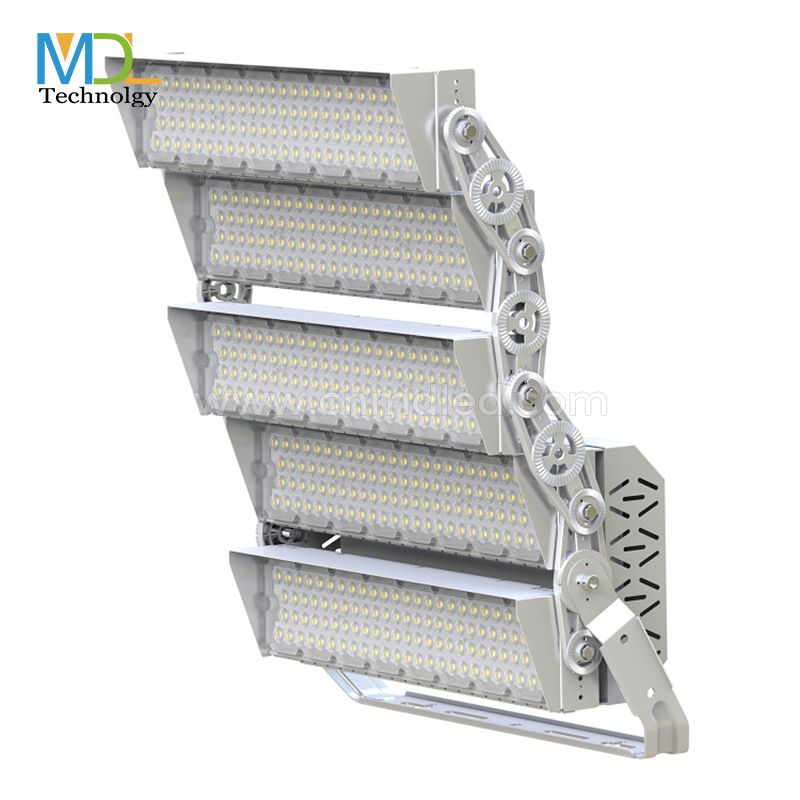

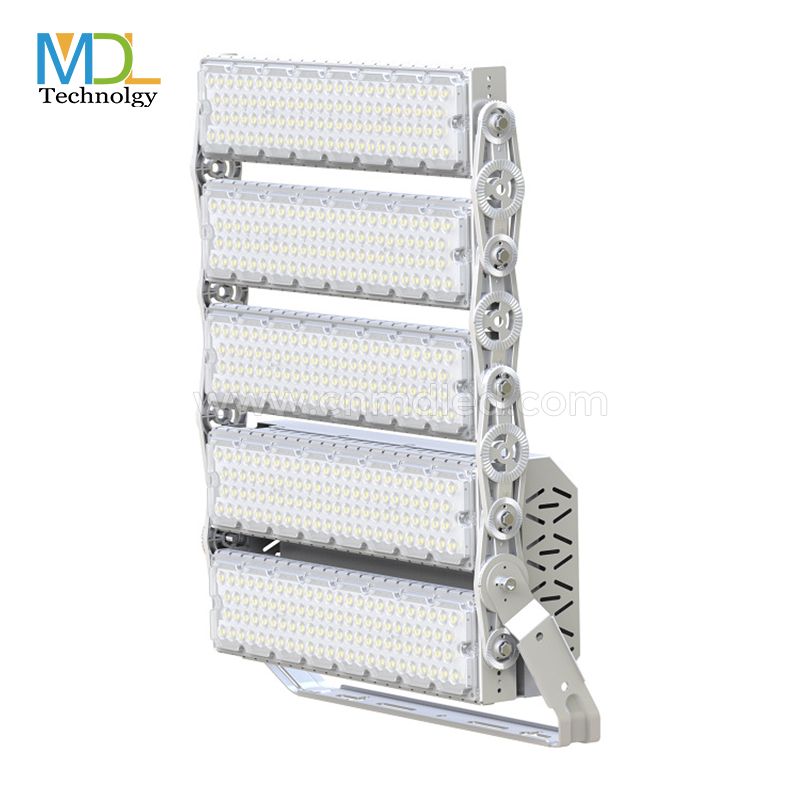

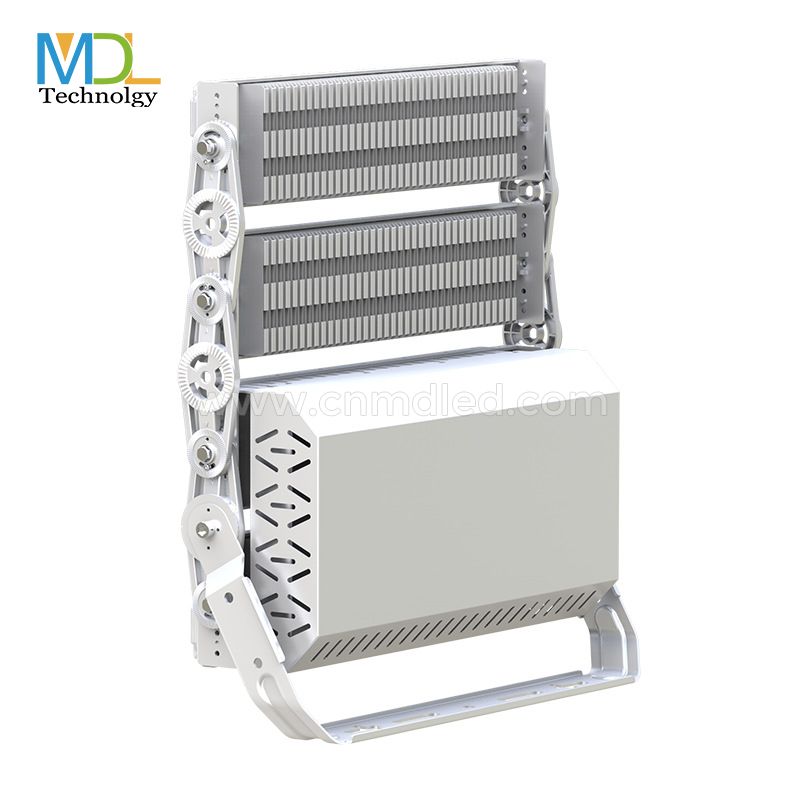

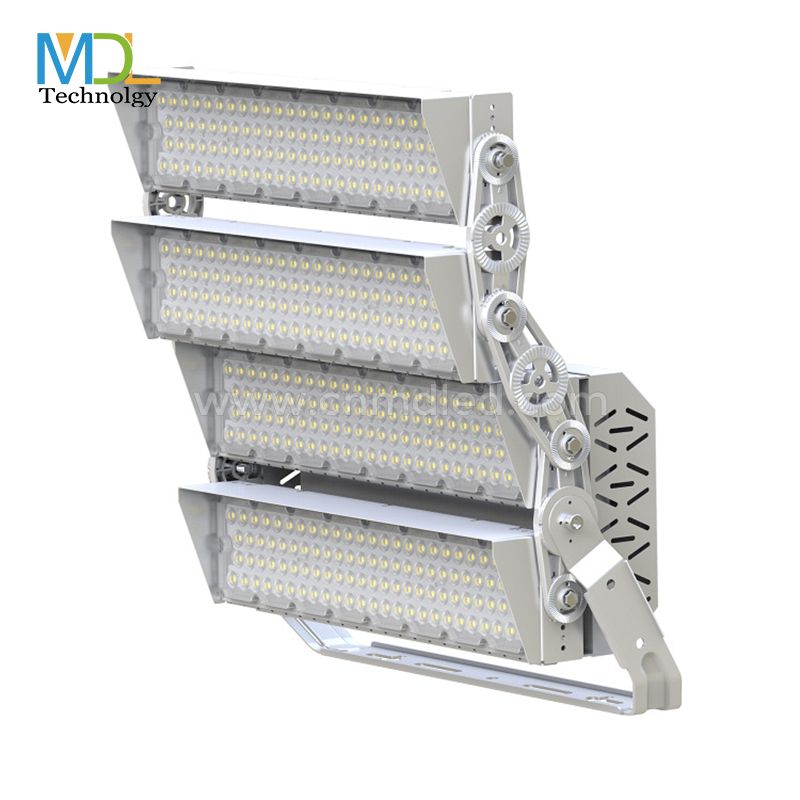

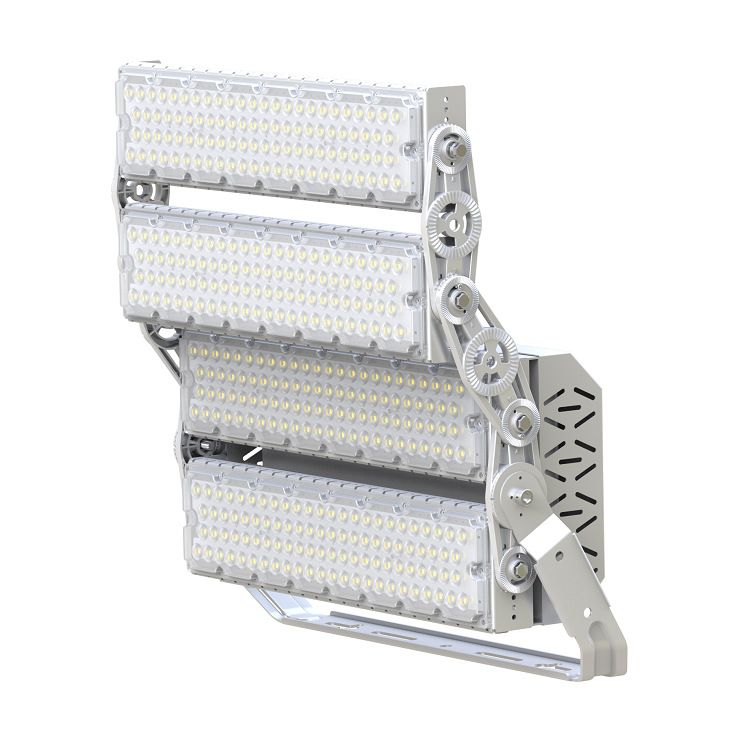

Equivalent Wider Lighting Angle LED Stadium Light Model:MDL-QCD16

Equivalent Wider Lighting Angle LED Stadium Light Model:MDL-QCD16

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.

Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100/120/140/150/160LM/W;

● CRI: 80;

● IP Range: IP65;

● LED chips: Epistar/Bridgelux/Cree/Citizen/Osram/Philips/Samsung available;

● Triac/0-10V/Dali available;

● Material: Aluminum

● Body Color: Black or other

● With cover or Without cover available;


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 60/90/120/Asymmetry degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Die-cast aluminum heatsink for cooleroperating temperatures

● -20℃ ～ +65℃ operating temperature

● -20℃ ～ +60℃ storage temperature

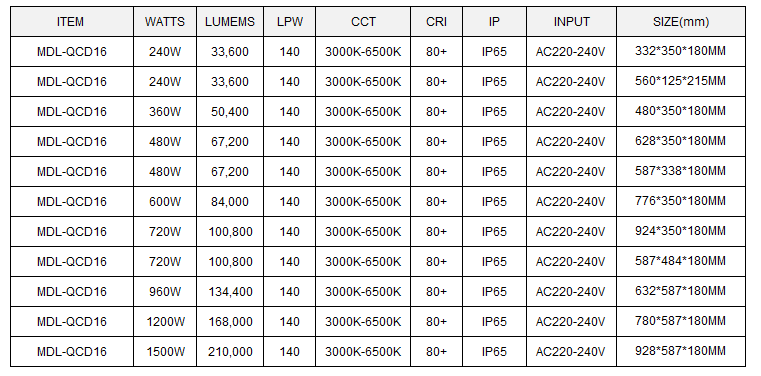

PERFORMANCE SUMMARY

LED Stadium Light Model:MDL-QCD16
