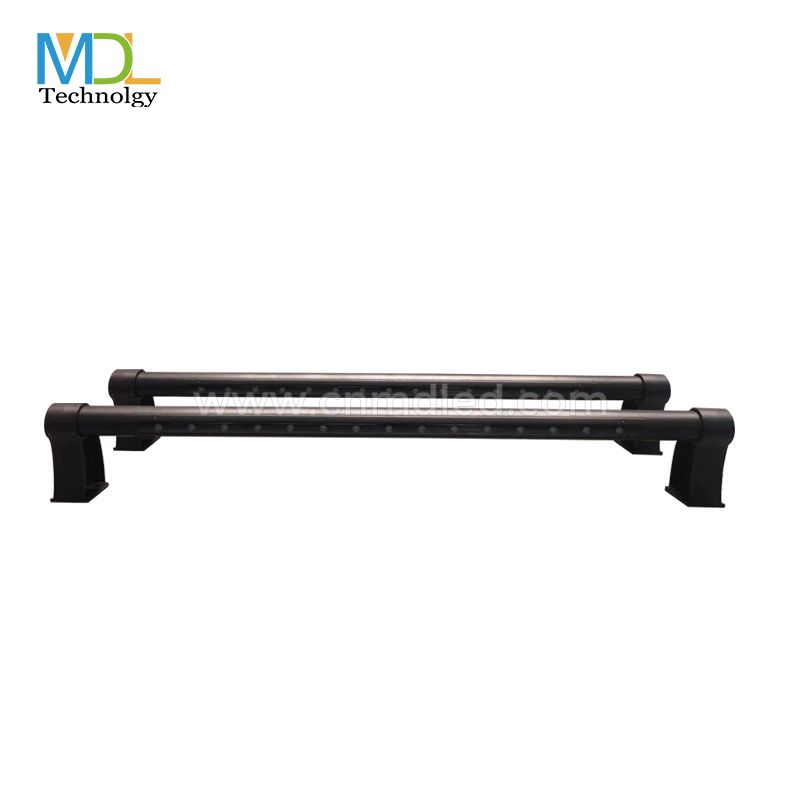

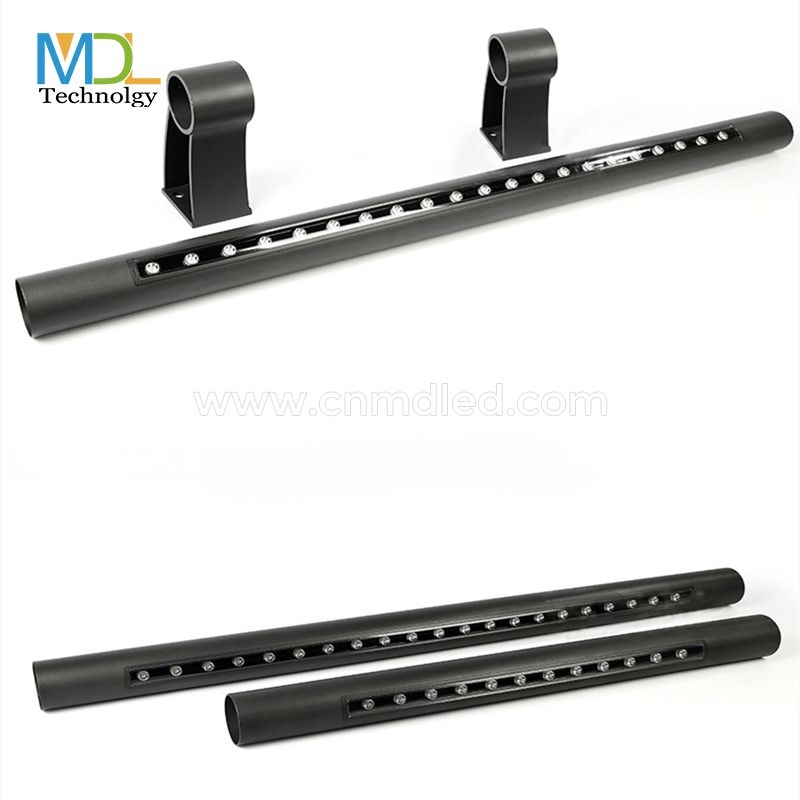

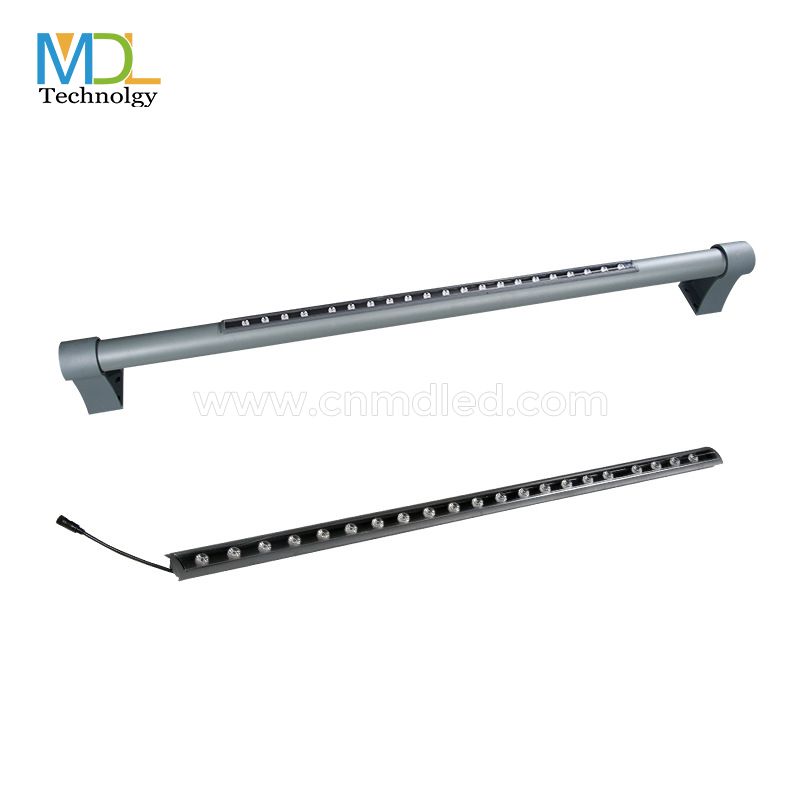

MDL Viaduct handrail light Bridge Handrail lighting Model:MDL-HLWL

MDL Viaduct handrail light Bridge Handrail lighting Model:MDL-HLWL

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.

Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● RGB/RGBW/Red/Yellow/Green/Blue available;

● Lume: 100LM/W;

● CRI: 80 available;

● LED chips: Epistar/Osram/Philips/Samsung available;

● Triac/0-10V/Dali/DMX available;

● IP Range: IP65;

● Material: Die-cast Aluminum+PC;

● With Baffle or Without Baffle Optional;

● Body Color: Gray or Black Or other;


ELECTRICAL

● Input Voltage: DC24V

● Beam angle: 120 degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Die-cast aluminum heatsink for cooleroperating temperatures

● -20℃ ～ +55℃ operating temperature

● -20℃ ～ +60℃ storage temperature

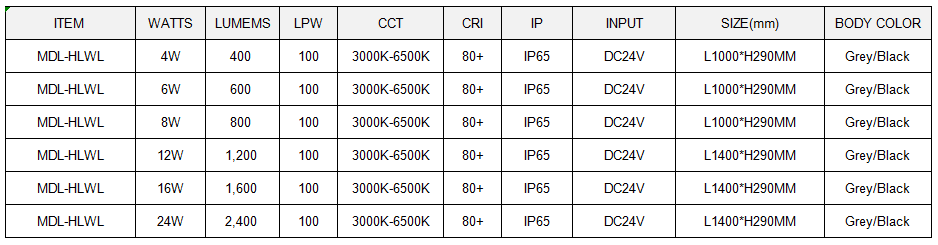

PERFORMANCE SUMMARY

LED Wall Washer Light Model:MDL-HLWL
