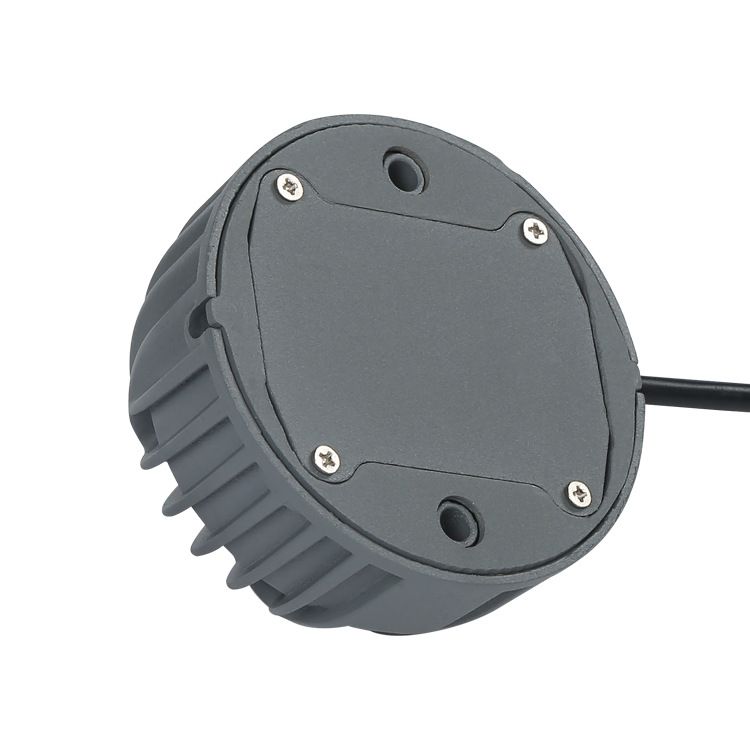

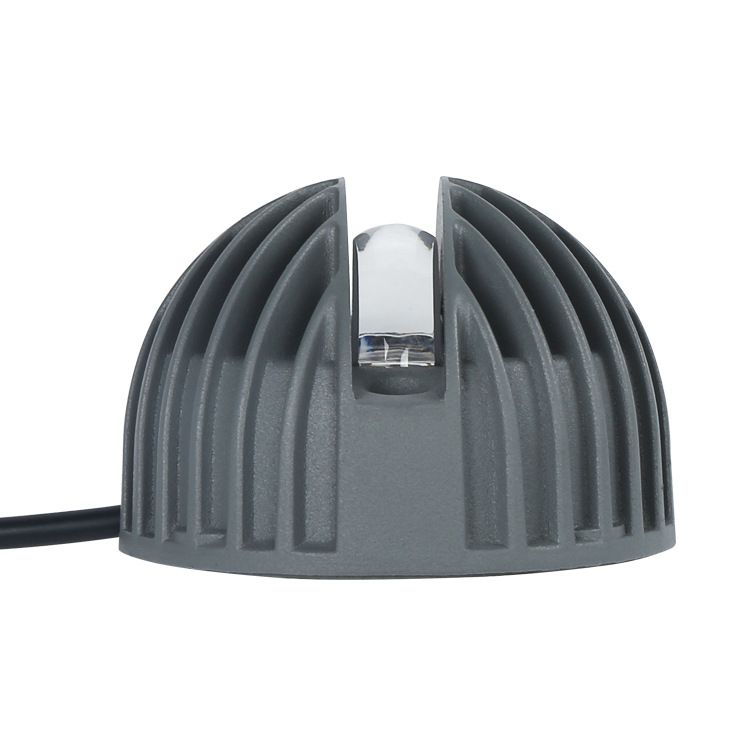

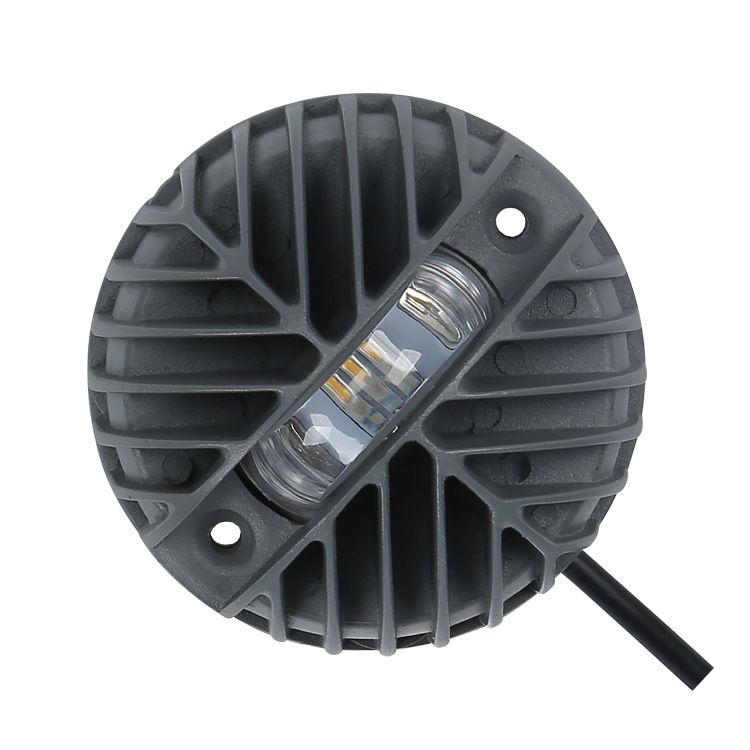

MDL 180 Degree 9W LED Wall Window sill lights Frame Wall KTV Hotel Bar Corridor Model: MDL-LWLD

MDL 180 Degree 9W LED Wall Window sill lights Frame Wall KTV Hotel Bar Corridor Model: MDL-LWLD

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100/120LM/W;

● CRI: 80/90/95 available;

● LED chips: Epistar/Bridgelux/Cree/Citizen/Osram/Philips/Samsung available;

● Triac/0-10V/Dali/DMX available;

● Fixed angle: YES

● Matrail: Aluminum

● Body Color:  White Or Black


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 360degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -25℃ ～ +55℃ operating temperature

● -25℃ ～ +60℃ storage temperature

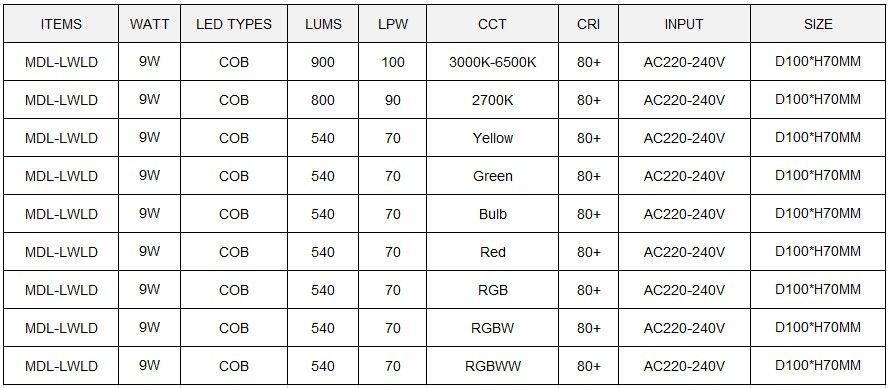

PERFORMANCE SUMMARY

LED Window Light Model: MDL-LWLD


PRODUCT DIMENSION DRAWING

LED Window Light Model: MDL-LWLB


ELECTRICAL CONNECTION(ONE COLOR)

LED Window Light Model: MDL-LWLB


ELECTRICAL CONNECTION(MIXED COLOR)

LED Window Light Model: MDL-LWLB
