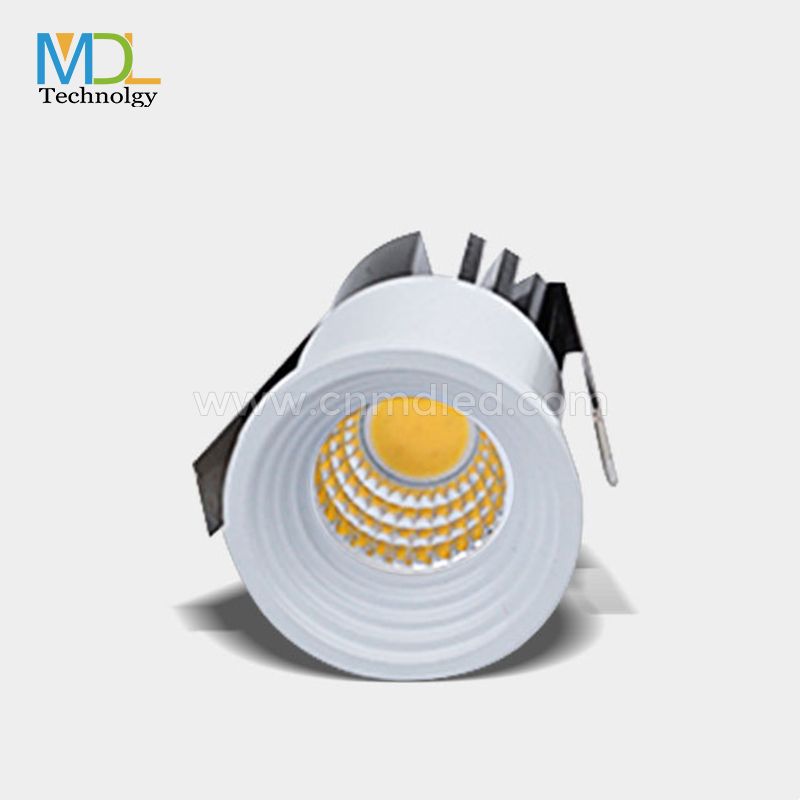

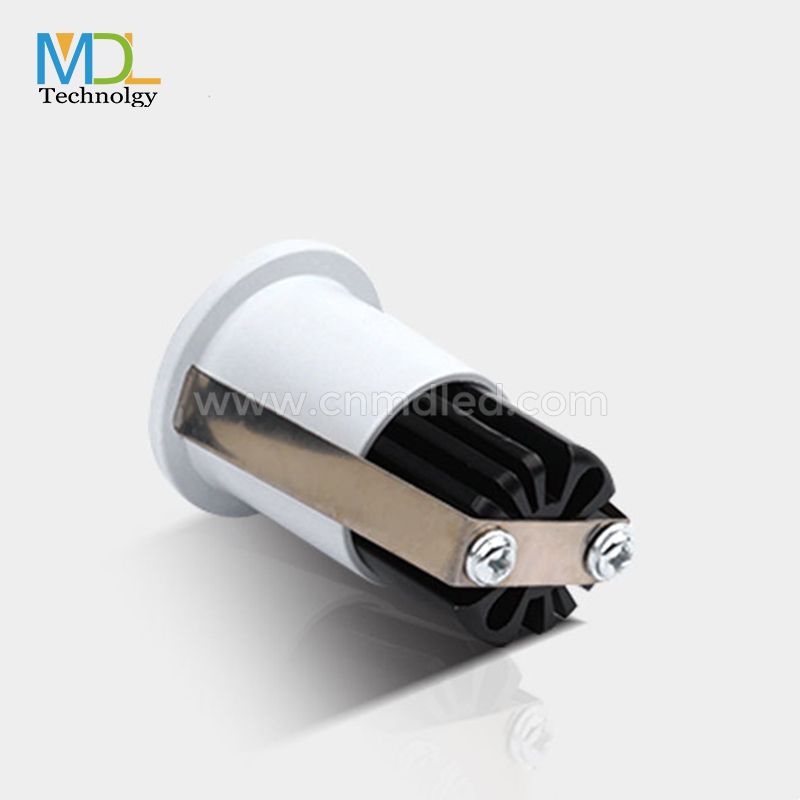

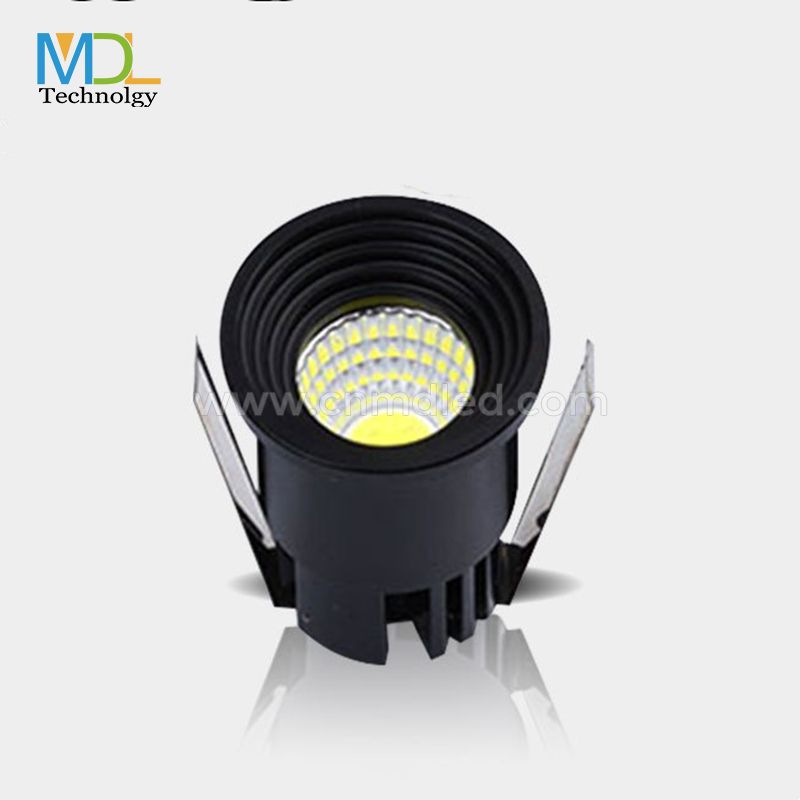

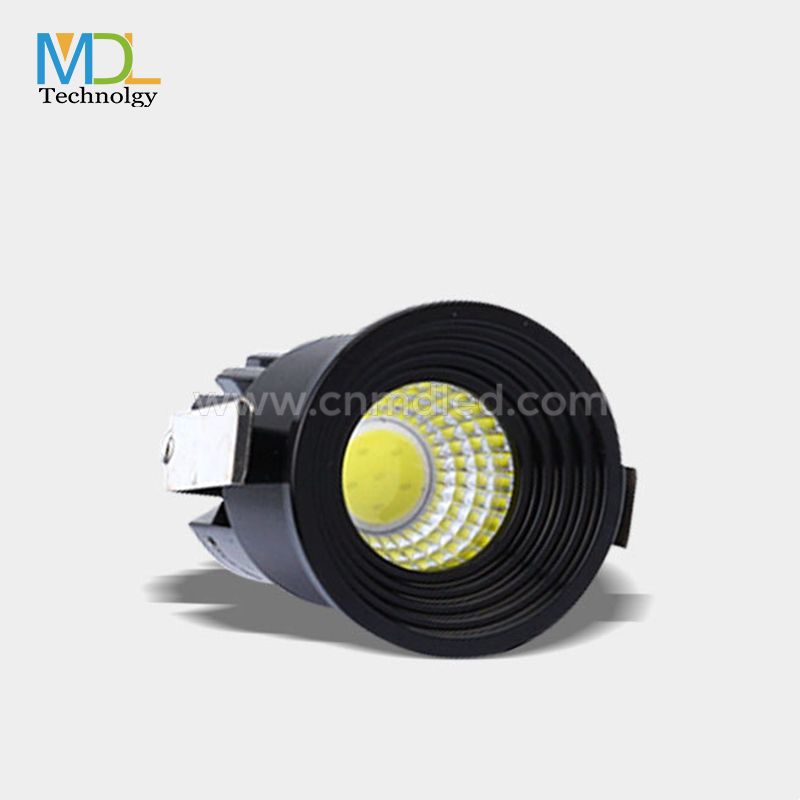

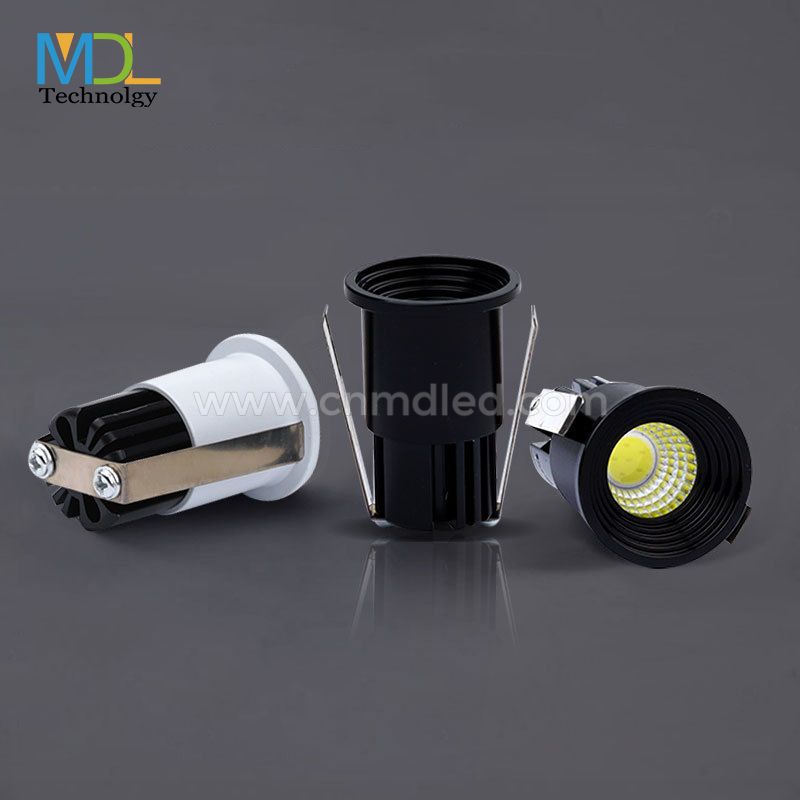

MDL MINI LED Down Light Model: MDL-MINI5

MDL MINI LED Down Light Model: MDL-MINI5

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.

Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100/120LM/W;

● CRI: 80/90/95 available;

● LED chips: Epistar/Bridgelux/Cree/Citizen/Osram/Philips/Samsung available;

● Triac/0-10V/Dali available;

● Tridonic/Philips/Osram/Lifud Driver available;

● Fixed angle: YES

● Material: Aluminum

● Body Color:  White


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 90/120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ～ +50℃ operating temperature

● -20℃ ～ +55℃ storage temperature

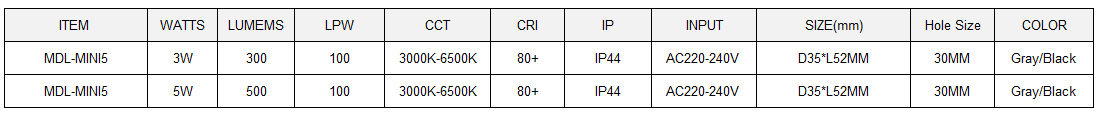

PERFORMANCE SUMMARY

ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 90/120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ～ +50℃ operating temperature

● -20℃ ～ +55℃ storage temperature


PERFORMANCE SUMMARY

MINI LED Down Light Model: MDL-MINI5
