MDL Outdoor LED double head wall lamp waterproof acrylic square wall lamp MDL- OWLN

MDL Outdoor LED double head wall lamp waterproof acrylic square wall lamp MDL- OWLN

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80/90/95 available;

● LED chips: Epistar/Osram/Philips/Samsung available;

● Triac/0-10V/Dali available;

● ON/OFF, Sensor available;
● IP Range: IP65

● Matrail: Aluminum

● Body Color: Gary or Black Or other


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Die-cast aluminum heatsink for cooleroperating temperatures

● -20℃ ～ +55℃ operating temperature

● -20℃ ～ +60℃ storage temperature

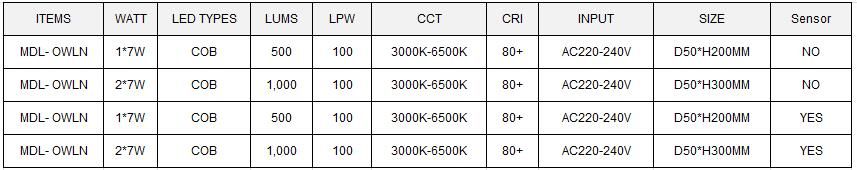

PERFORMANCE SUMMARY

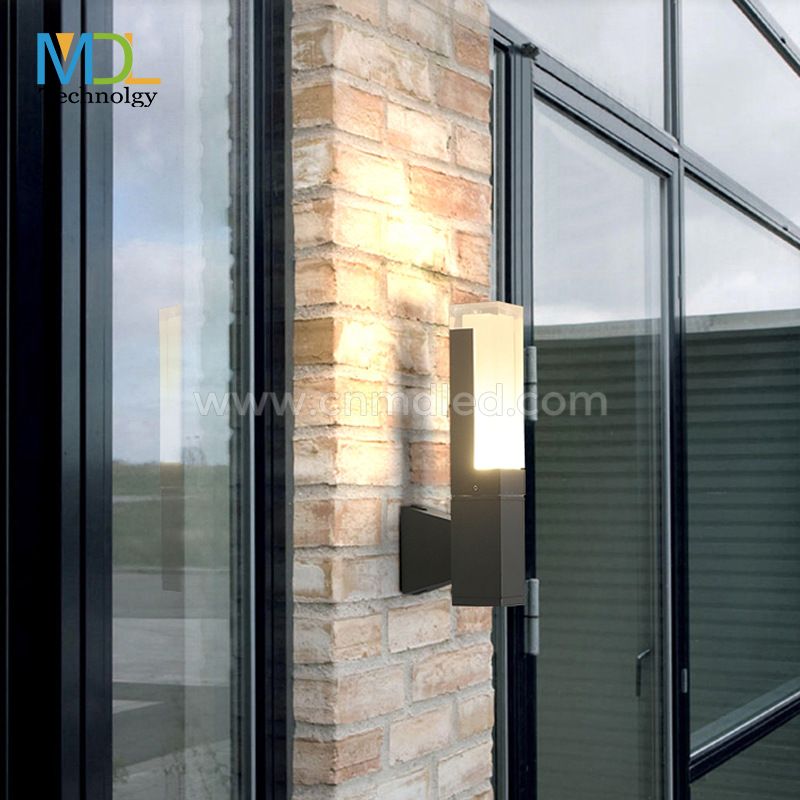

INSTALLATION
