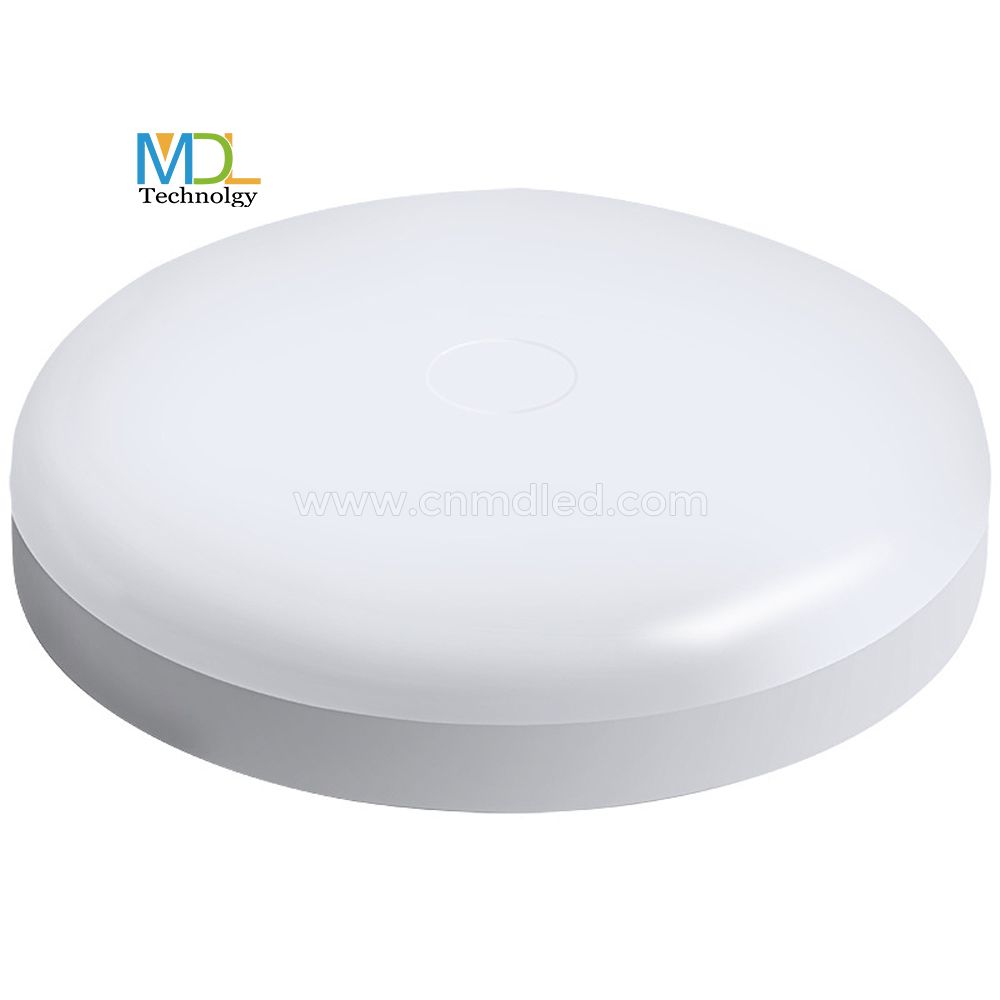

MDL 15W/20W/27W/36W Waterproof IP67 LED Celing Light Model: MDL-WCL1

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80/90/95 available;

● LED chips: Epistar 2835SMD available;

● Triac/0-10V/Dali/CCT change color available;

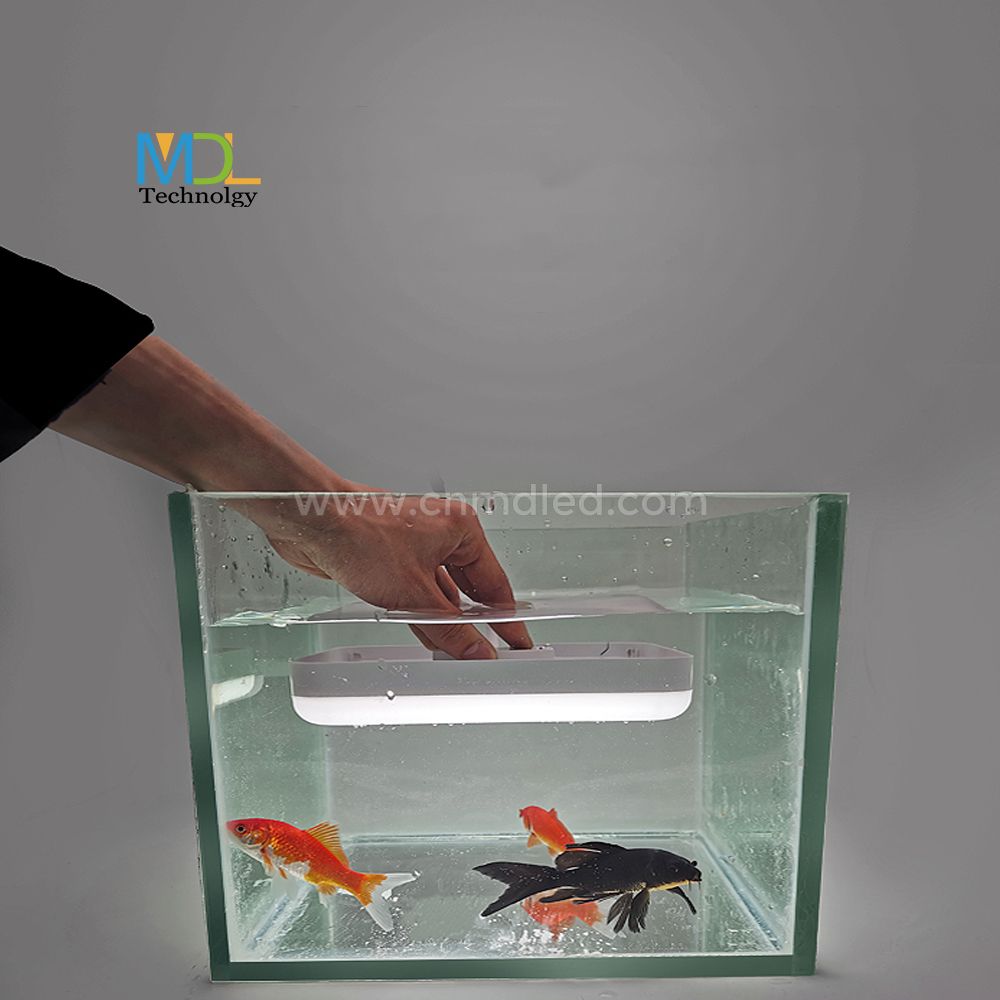

● IP Range: IP67

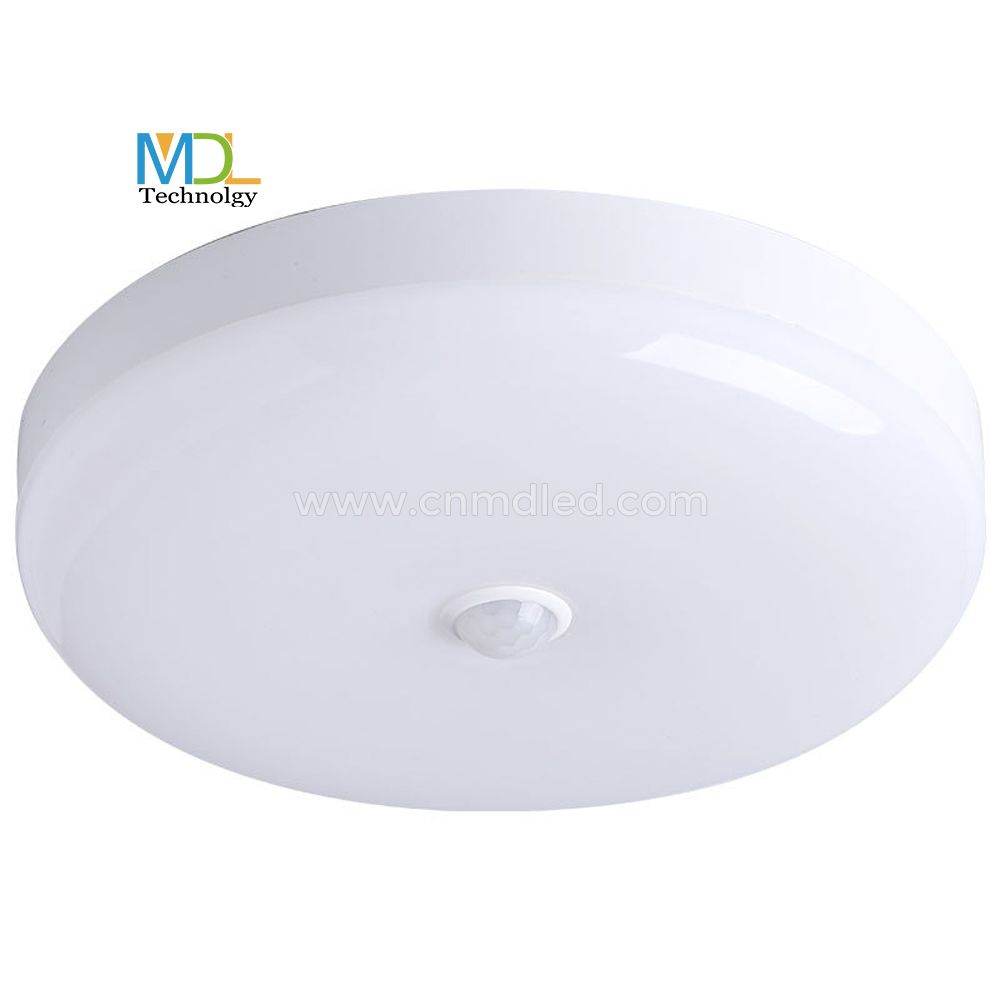

● ON/OFF/PIR Motion Sensor/Radar sensor/Voice Sensor/Emergency available;

● Matrail: ABS+PC

● Body Color:  Sliver or White or Black or Other

ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%

CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ～ +50℃ operating temperature

● -20℃ ～ +55℃ storage temperature

PERFORMANCE SUMMARY

WORKING TIPS

Radar sensor: When people come that light is on,  When people go that  light is off .

Sensing distance: <6-8M, Sensing angle: 180°, Delay: 30±10 seconds

Voice-activated induction: When have sound that light is on,  When dont have sound that light is off .

Sensing distance: omni-directional, Sensitivity: 60 decibels, Delay: 30±10 seconds

Motion sensor: When people come that light is on,  When people go that  light is off .

Sensing distance: <6-8M, Sensing angle: 180°, Delay: 30±10 seconds

Too bright or in the day,the light not work. It only work in dark environment or at night.

FEATURES

●Elegant and modern

The appearance of this LED ceiling light is elegant, neat, and modern, for different lighting decoration style.

●Energy-saving

This Led light is equipped with high quality SMD LEDs, which is super bright but energy-saving,

●Soft and Bright

This overhead light gives off uniform and bright light without flickering, keeping your eyes free from harsh and glare lights.

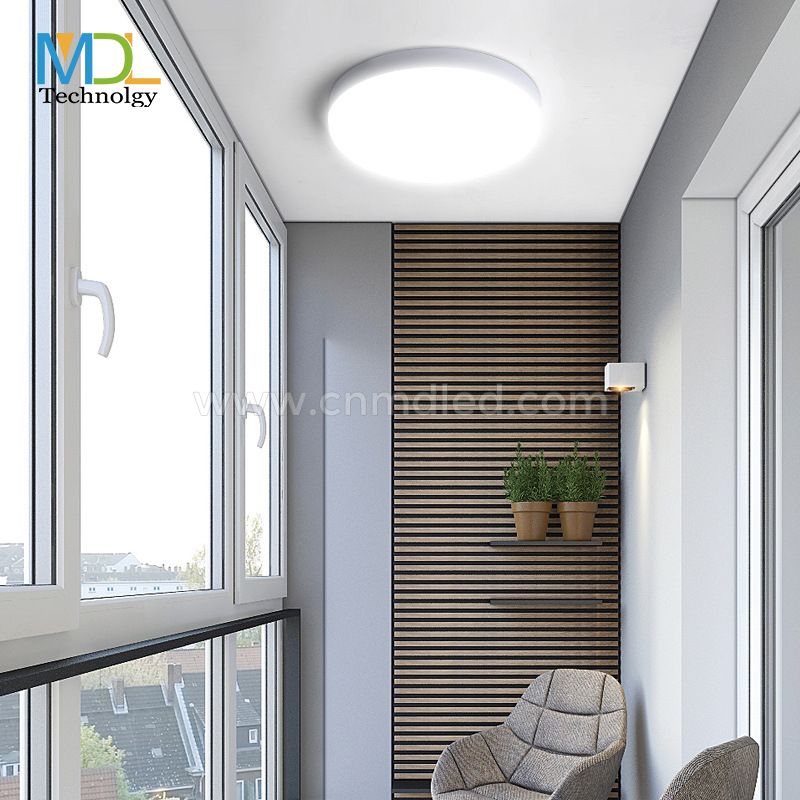

●Wide applications

This LED ceiling lights is suitable for Living room, kitchen, bedroom, aisles, stairs, factories, warehouses, parking lots.

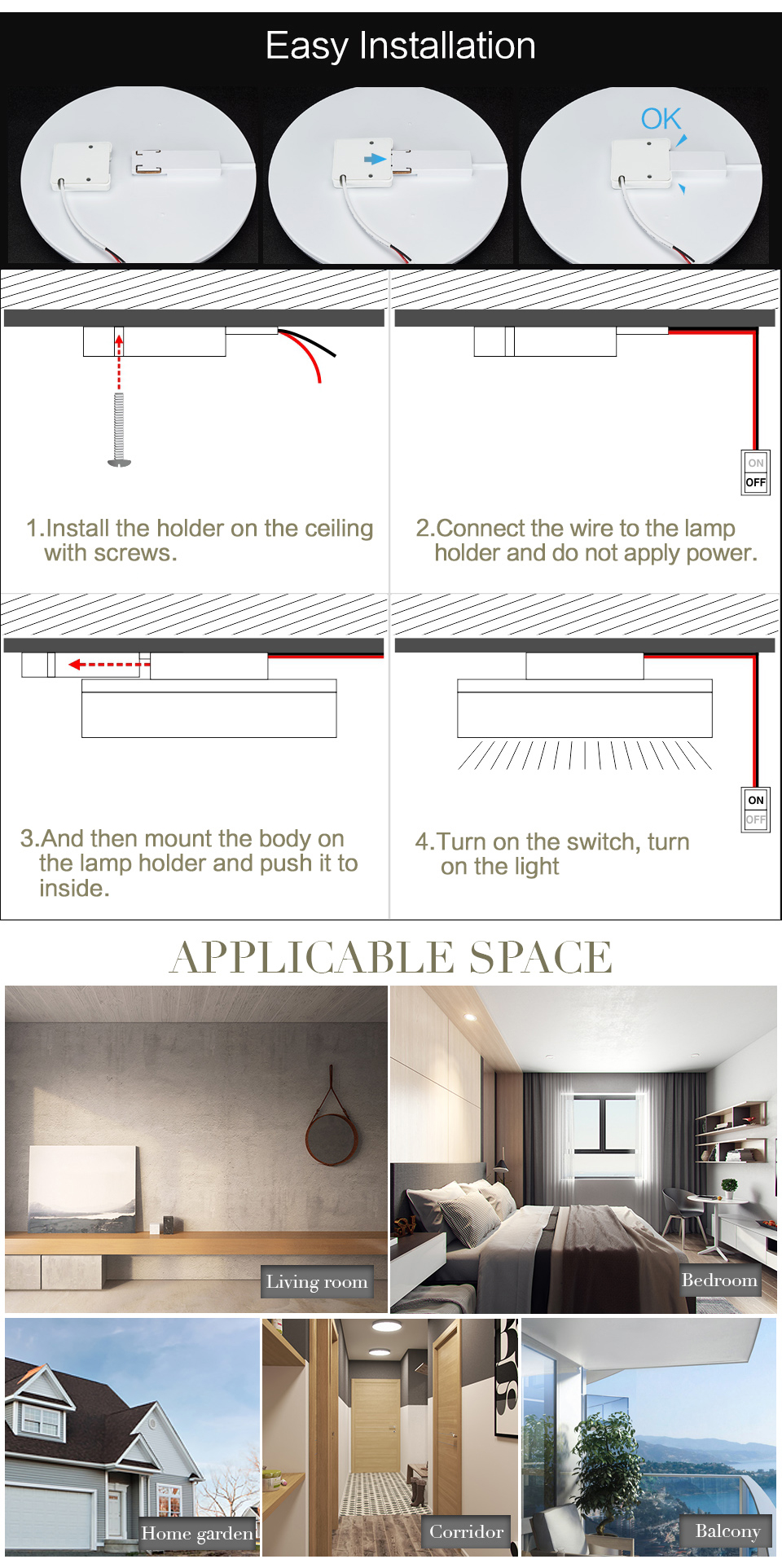

INSTALLATION
