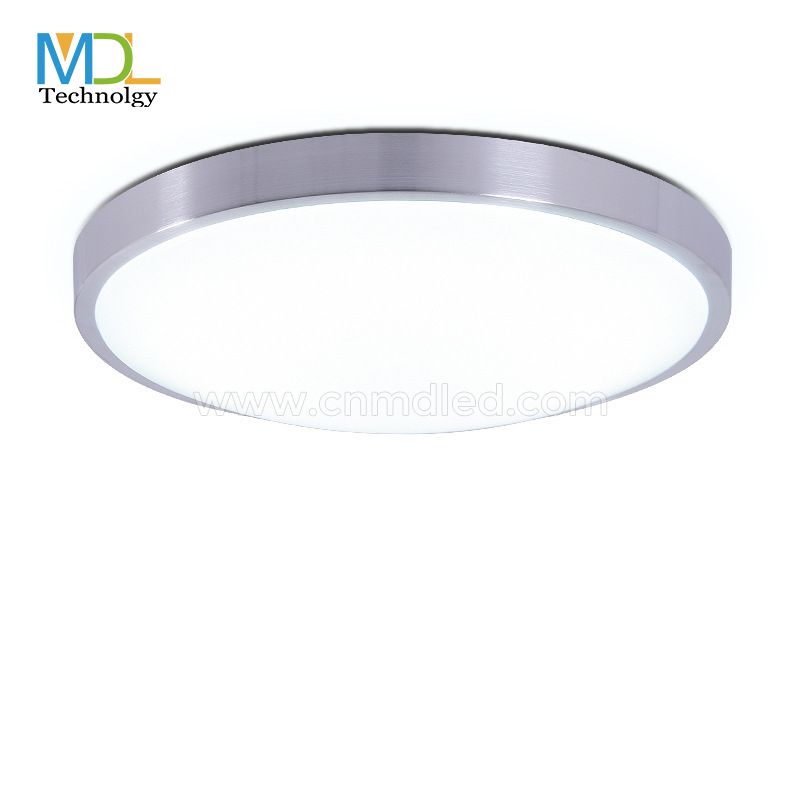

MDL IP54 18w/24w/30w/36w Waterproof LED Celing Light Model: MDL-CL3

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80/90/95 available;

● LED chips: Epistar 2835SMD available;

● Triac/0-10V/Dali/CCT change color available;

● IP Range: IP54

● ON/OFF/PIR Motion Sensor/Radar sensor/Voice Sensor/Emergency available;

● Matrail: Aluminum +PMMA

● Body Color:  Sliver or White or Black or Other


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ~ +50℃ operating temperature

● -20℃ ~ +55℃ storage temperature

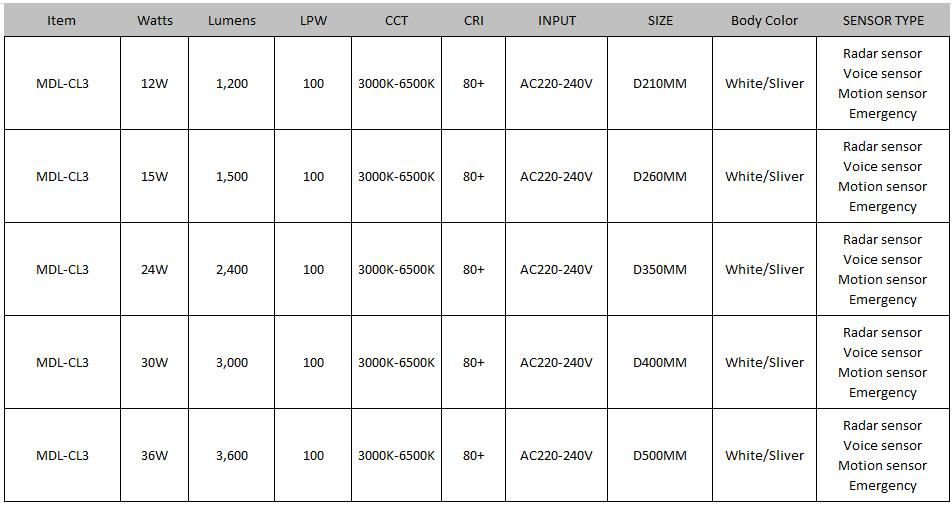

PERFORMANCE SUMMARY

Waterproof LED Celing Light Model: MDL-CL3



WORKING TIPS

Radar sensor: When people come that light is on,  When people go that  light is off .

Sensing distance: <6-8M, Sensing angle: 180°, Delay: 30±10 seconds


Voice-activated induction: When have sound that light is on,  When dont have sound that light is off .

Sensing distance: omni-directional, Sensitivity: 60 decibels, Delay: 30±10 seconds


Motion sensor: When people come that light is on,  When people go that  light is off .

Sensing distance: <6-8M, Sensing angle: 180°, Delay: 30±10 seconds

Too bright or in the day,the light not work. It only work in dark environment or at night.


FEATURES

●Elegant and modern

The appearance of this LED ceiling light is elegant, neat, and modern, for different lighting decoration style.

●Energy-saving

This Led light is equipped with high quality SMD LEDs, which is super bright but energy-saving,

●Soft and Bright

This overhead light gives off uniform and bright light without flickering, keeping your eyes free from harsh and glare lights.

●Wide applications

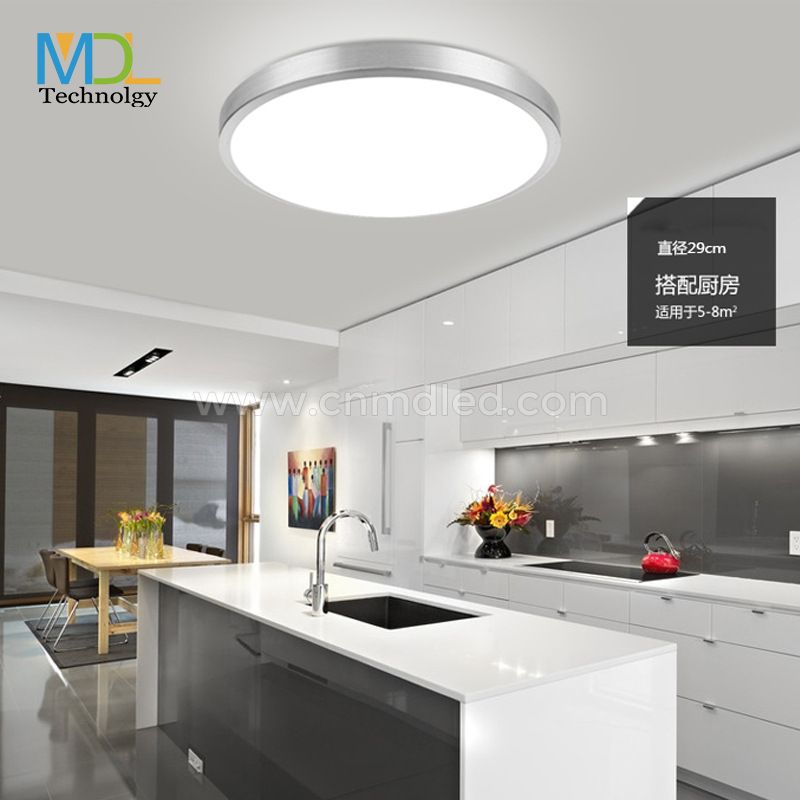

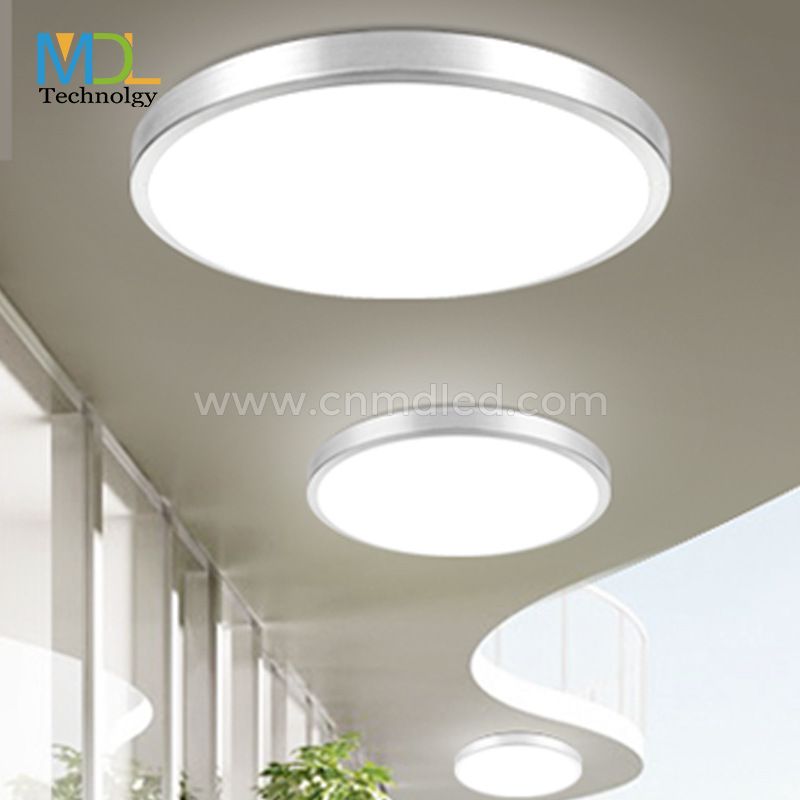

This LED ceiling lights is suitable for Living room, kitchen, bedroom, aisles, stairs, factories, warehouses, parking lots.

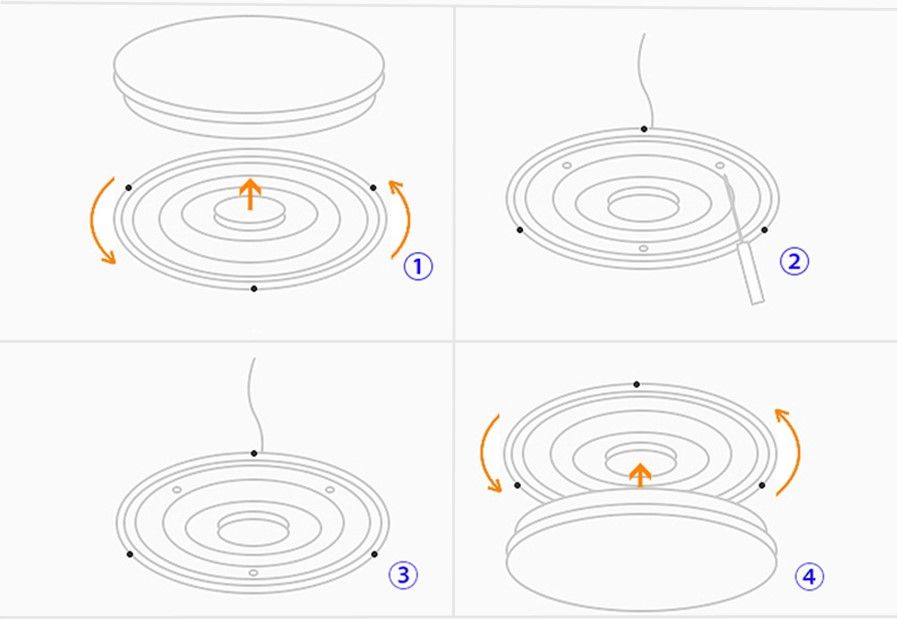

INSTALLATION

●The radiolocator surface is recommended to be installed facing the human body to achieve the best effect;

●There should be no metal around the radiolocator installation environment. Metal interference with the radiolocator will cause the motion sensing range to become shorter or malfunction;

●The installation distance between the two radiolocators needs to be more than 4 meters or more, to avoid mutual interference between the radiolocators while working at the same time, resulting in radar sensing failure.

Waterproof LED Celing Light Model: MDL-CL3
